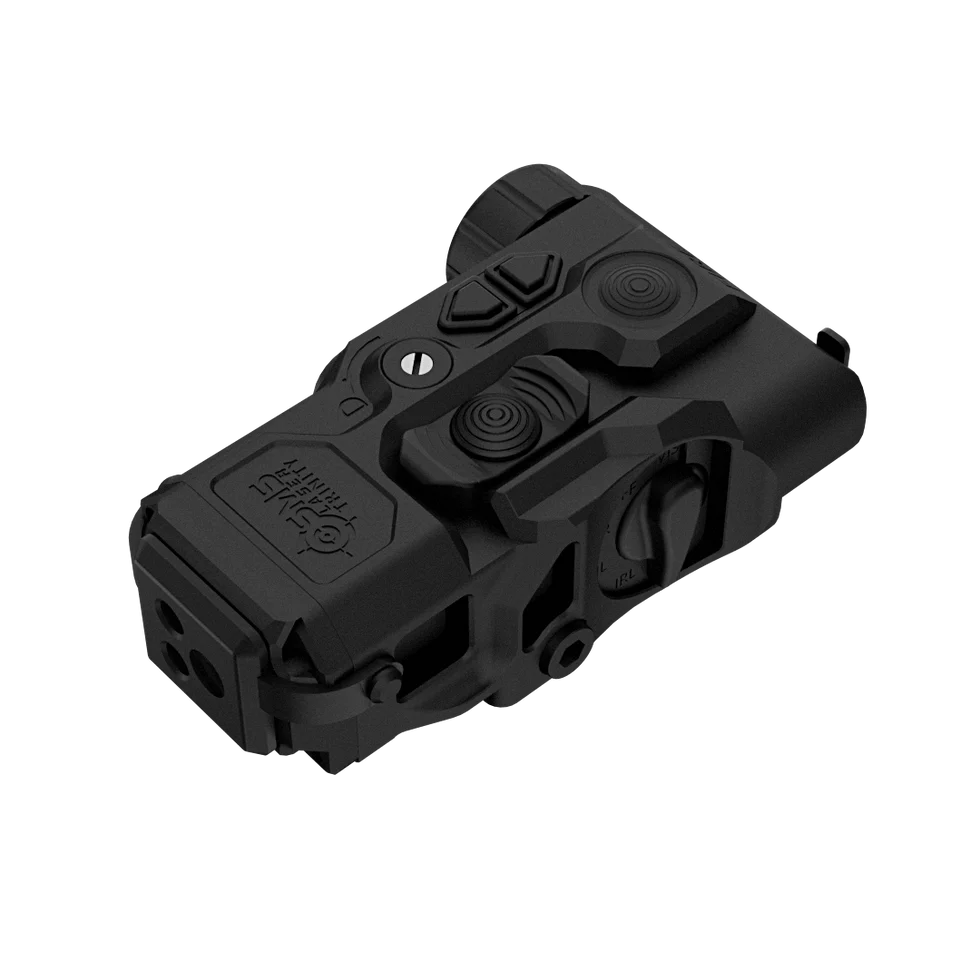

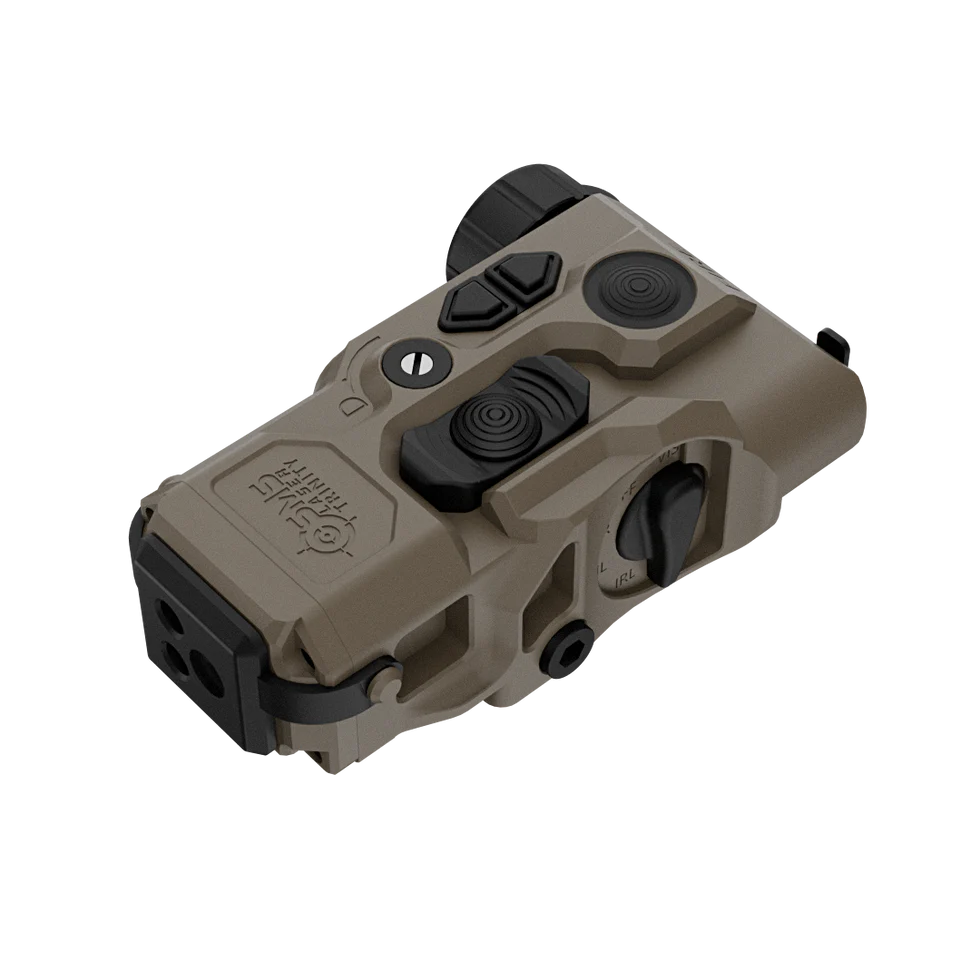

SMS Laser Trinity

Key Features

• The IR illuminator utilizes VCSEL technology, delivering a cleaner illumination effect than traditional EEL illuminators!
• IR lasers, VIS lasers, and IR illuminators are coaxial and do not require separate calibration.
• IR Illuminator variable beam divergence: ~25 MRAD to ~165 MRAD
• Adjustable power (low power IR laser high power IR illuminator, reduces halo from IR laser)
• A flood lens has been configured to illuminate a wider area.

Optical Specifications

• Visible laser power: <5mW
• Visible laser wavelength: 520nm
• IR laser power: 0.7mW
• IR laser wavelength: 850nm
• IR Illuminator Power: 100mW(Vcsel)
• IR Illuminator wavelength: 850nm

Other specifications

• Dimension (in):3.54(L)*2.36(W)*1.18(H)
• Weight (oz):6.7
• Battery:CR123 OR 16340
• Housing Material:7075 Aluminum
• Surface Finish: Black(Anodizing)    FDE(Cerakoting)
• Adjustment per Click: 0.8MOA
• Waterproof: IPX8
• Vibration: 1200G
